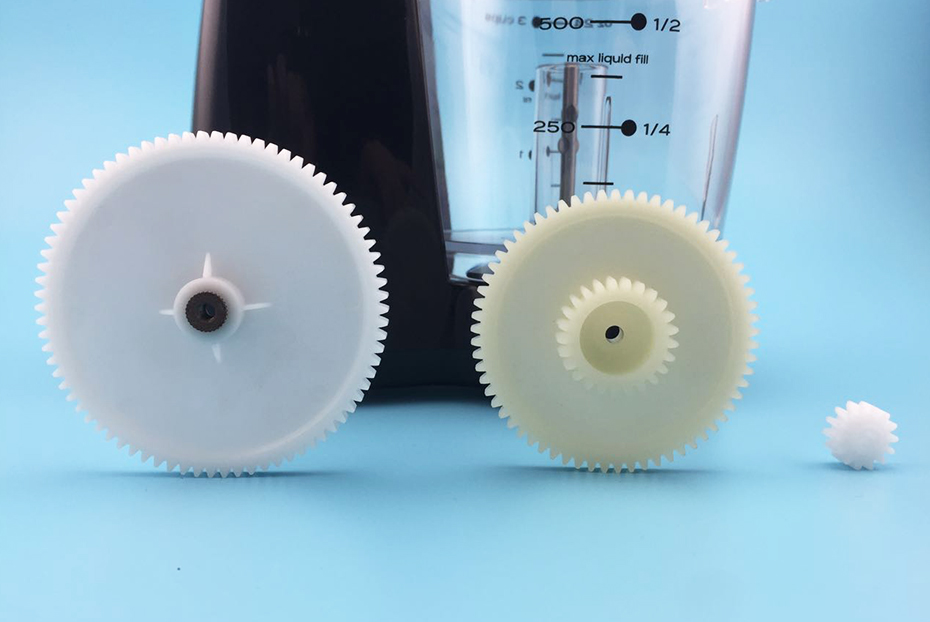

Food mixer gear set
Food mixer gear set Applications and Precision Gear Manufacturing
UNITECH-GEAR household gearboxes are suitable for various home and commercial food mixers, peelers, foamers, massagers, and fascia guns. The gearbox delivers uniform torque, low noise, oil-free operation, and environmentally clean, cost-effective performance.
The food mixer gear transmission structure includes a power input, gear transmission mechanism, and power output. The transmission features a sun gear meshing with planetary gears — the power input drives the sun gear, which drives the planetary gears to achieve power output. The planetary carrier is externally connected to both the gear train body and gearbox housing through large-diameter ball bearings.
This design makes the mixer gear train highly compact. The sun gear with parallel worm gear drives the planetary gears with the required driving force, providing stable drive and even force distribution on the planetary gears. This effectively solves the technical problem of unilateral planetary gear loading and significantly improves overall gear train service life.
UNITECH-GEAR Gears — High Precision, Low Noise, Long-Lasting Durability
Mastering Core Manufacturing Technology — Pursuing Excellence
Design-Driven, Analysis-FocusedExperienced Engineers Optimize Tooth Profile Design
- Gear design analysis software optimizes tooth profiles, improving safety factors and service life.
- Close communication with customers to understand product functional requirements including material selection, mechanical strength, dimensional accuracy, surface finish, and service life.
- Rigorous design review process: pre-design structural discussion, designer self-inspection against checklists, and post-design review with manufacturing teams.
Processing-Driven, Precision-FocusedFrom Mold Design to Injection Molding — Precision Manufacturing
- Independent machining department for copper electrode (EDM electrode) design and manufacturing. Post-machining copper electrode surface roughness reaches Ra 0.3, accuracy up to JIS Grade 0 (highest level).
- Mold cavity mirror finishing using Charmilles C-axis EDM, achieving surface roughness of Ra 0.3 and accuracy within 0.001mm.
- Japanese brand high-precision injection molding machines produce gears with dimensional tolerances within 0.03mm and weight deviation typically below 0.7%.
Detail-Driven, Control-Focused100% Visual Inspection — Full Testing Before Shipment
- Advanced inspection equipment: gear meshing testers, CMM (Coordinate Measuring Machines), roundness testers, and electron microscopes ensure product quality.
- Strict implementation of ISO 9001 quality management system ensures all products meet customer requirements.
- All gear products undergo 100% visual inspection before assembly, and all gearboxes are fully tested before shipment.
Need a Custom Gear Solution?
Contact UNITECH-GEAR for professional plastic gear design and manufacturing — from prototype to mass production.
