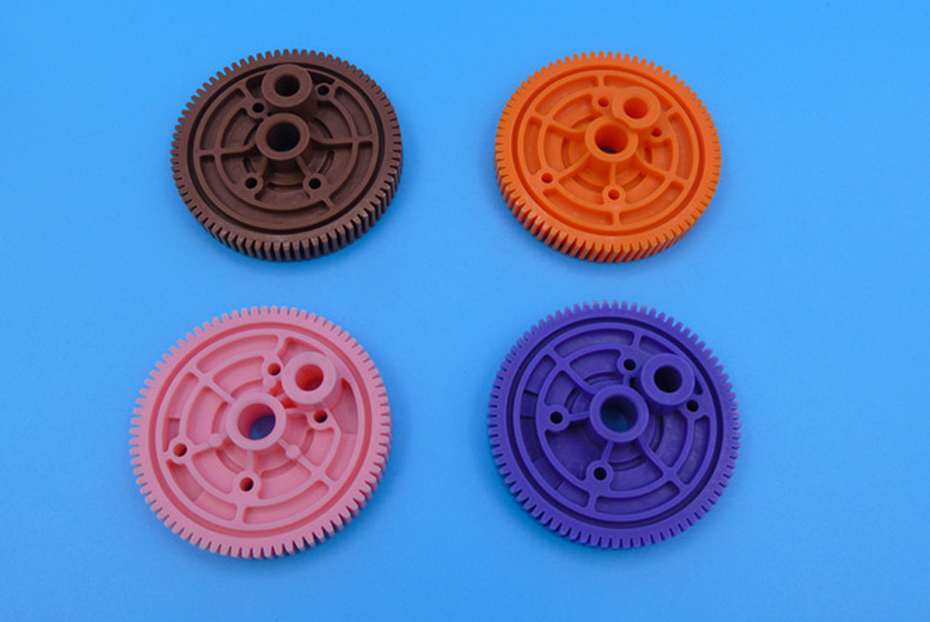

Wiper motor gears
Wiper motor gears Applications and Precision Gear Manufacturing
Automotive windshield wipers consist of an electric motor, reducer, linkage mechanism, wiper arm pivot shaft, and wiper blade assembly. Their primary function is to clear rain, snow, and dust from the windshield that obstruct driver visibility.
Vehicle wipers are configured as either manual speed adjustment or automatic speed adjustment types. Manual wipers adjust wiper speed through different gear positions based on rainfall intensity. Automatic wipers use body sensors to detect rainfall and adjust wiper speed steplessly. The wiper's power source is the electric motor — the heart of the entire wiper system. It uses DC drive and is typically integrated with the worm gear mechanical assembly as a single unit.
The worm gear mechanism reduces speed and increases torque, with the output shaft driving the linkage mechanism that converts continuous rotary motion into left-right oscillating motion. UNITECH-GEAR focuses on plastic worm gear drive design and manufacturing, with worm gears featuring high torque transmission, precise stability, wear and fatigue resistance, and excellent durability.
UNITECH-GEAR Gears — High Precision, Low Noise, Long-Lasting Durability
Mastering Core Manufacturing Technology — Pursuing Excellence
Design-Driven, Analysis-FocusedExperienced Engineers Optimize Tooth Profile Design
- Gear design analysis software optimizes tooth profiles, improving safety factors and service life.
- Close communication with customers to understand product functional requirements including material selection, mechanical strength, dimensional accuracy, surface finish, and service life.
- Rigorous design review process: pre-design structural discussion, designer self-inspection against checklists, and post-design review with manufacturing teams.
Processing-Driven, Precision-FocusedFrom Mold Design to Injection Molding — Precision Manufacturing
- Independent machining department for copper electrode (EDM electrode) design and manufacturing. Post-machining copper electrode surface roughness reaches Ra 0.3, accuracy up to JIS Grade 0 (highest level).
- Mold cavity mirror finishing using Charmilles C-axis EDM, achieving surface roughness of Ra 0.3 and accuracy within 0.001mm.
- Japanese brand high-precision injection molding machines produce gears with dimensional tolerances within 0.03mm and weight deviation typically below 0.7%.
Detail-Driven, Control-Focused100% Visual Inspection — Full Testing Before Shipment
- Advanced inspection equipment: gear meshing testers, CMM (Coordinate Measuring Machines), roundness testers, and electron microscopes ensure product quality.
- Strict implementation of ISO 9001 quality management system ensures all products meet customer requirements.
- All gear products undergo 100% visual inspection before assembly, and all gearboxes are fully tested before shipment.
Need a Custom Gear Solution?
Contact UNITECH-GEAR for professional plastic gear design and manufacturing — from prototype to mass production.
